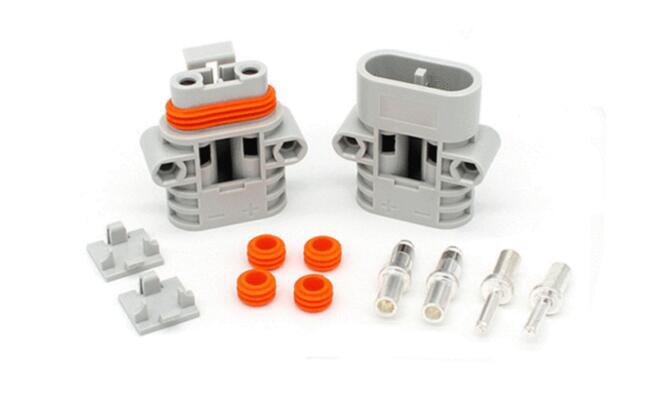

The specifications and types of Anderson connector terminals can be said to be diverse. Many key criteria need to be considered when selecting appropriate Anderson connector terminals for application devices. FBelec will explain the eight options for selecting the appropriate Anderson connector terminal. A skill, I hope you can learn more about some characteristics of the connector. Anderson Power connectors.

Anderson connector terminal

1. Remember the performance requirements of Anderson connector terminals

When selecting Anderson connector terminals, you must be aware of your needs. For example, how many signals are there in total? What is the current, frequency and voltage they carry? Whether the connector signal is analog or digital or combined. Because the signal combination will affect the connector type, pin arrangement and wiring. For example, high-frequency signals may require coaxial connections, while low-level analog signals may require shielding.

In addition, some signal combinations cannot be included in the same connector. If high voltage pins are involved, creepage distance and electrical clearance may need to be considered. If there is a high current path, multiple pins and larger wires may be required, and if it is based on unique circumstances and design requirements, a customized solution may also be required.

2. Consider the rated current and working voltage of Anderson connector terminals

Rated current is the most important standard for selecting terminal connectors. It is a measure of the amount of current that can flow through the paired terminal. It is ideally expressed in amperes per circuit. It shall be based on the temperature rise of adjacent terminals and given enclosure. The number of circuits in the body can adjust or reduce the current.

3. Check the space limit of Anderson connector terminal

The size and weight of Anderson connector terminals decrease with the decrease of available space. However, their ability to withstand the increase of plug and non plug frequencies has been greatly improved, so you may need to find more options in Anderson connector terminals according to the situation applicable to your project and its design requirements.

4. Verify the operating temperature range of Anderson connector terminals

Most electrical connectors will be affected by extreme conditions such as vibration and shock, while cables and Anderson connector terminals specially designed for extreme conditions and hazardous environments have special functions of resisting vibration and shock and withstanding extreme temperature. Therefore, the appropriate Anderson connector terminal can be selected according to the location of the Anderson connector terminal, near the heat source, working temperature, and the frequency of inserting and canceling inserting.

5. Confirm the reliability level of Anderson connector terminal,Forklift Battery Connectors

Reliability is another important factor to consider when purchasing Anderson connector terminals. However, reliability is a complex concept that depends on several factors. The exact number is difficult to determine, but some connectors have MTBF specifications. This can be used as a guide for selecting the correct connector for any application.

6. Ensure that Anderson connector has good environmental tightness, Battery Cable Connector

Some environments need to prevent the intrusion of flammable or combustible gases, vapors, dust or liquids. Anderson connector has environmental protection sealing performance, which can effectively prevent accidental splash. Once you know the required security level, you can verify the IP level number in the IP code system and see if the correct Anderson connector terminal is selected.

7. Anderson connector terminal material and electroplating factors,battery power plug

Terminal materials and electroplating are usually the last factors to be considered, but since most Anderson connectors are made of PP plastic, they have a flammability grade with high flame retardant continuity. Standard options available include tin, lead and selected gold for most applications. Substrates are usually made of phosphor bronze or brass because they have excellent strength and current carrying capacity even if exposed to high ambient temperature for a long time.

8. Calculation and pricing of Anderson connector terminals

Connector prices are usually calculated based on the total cost including sockets and plugs, the cost of Anderson connector terminals, and the labor cost of connecting wires to terminals and inserting them into the housing. Therefore, the most important standard will determine the type and size of Anderson connector. Other factors to be considered here include operating voltage, conductor size, configuration, meshing force and circuit size.
